DSP Processing Unit, 2 Channel In x 8 Channel Out
We will try to keep these in stock, but many times these items are being drop shipped to our facility for inspection. We will then send the product on to you. This could delay the time it takes to receive the items by 5 days to 2 weeks. We have decided it was best to make sure it checks out OK before having it go out to you. Contact us for ETAs before or after purchase, because we always have them coming in.
Part 1: Hareware installation1. Take out radio, disconnect original connector2. Both ends on DSP cable, one connect to radio, another connect to car socket3. Connect white plug to DSP box4. Lay out all cables, then take DSP box into car glove box
Part 2: Software Installation and Adjustment1. Installation ISUDAR app into mobile and turn on, then play car music;2. Click "Auto EQ" in the setting of App, accord to the tip and take your mobile in a suitable place;3. Wait "Auto adjust" end, click " Save" to save
User Friendly OperationSupport IOS/Android Mobile ControlSupport Windows PC Control
Filters Adjustment SupportingFrequency High pass and Low passSlope adjustmentBetter layering of sound
31-Band EQ AjustmentEach channel can be adjusted directlyThe curves and values are displayed intuitivelySupport EQ automatic adjustment

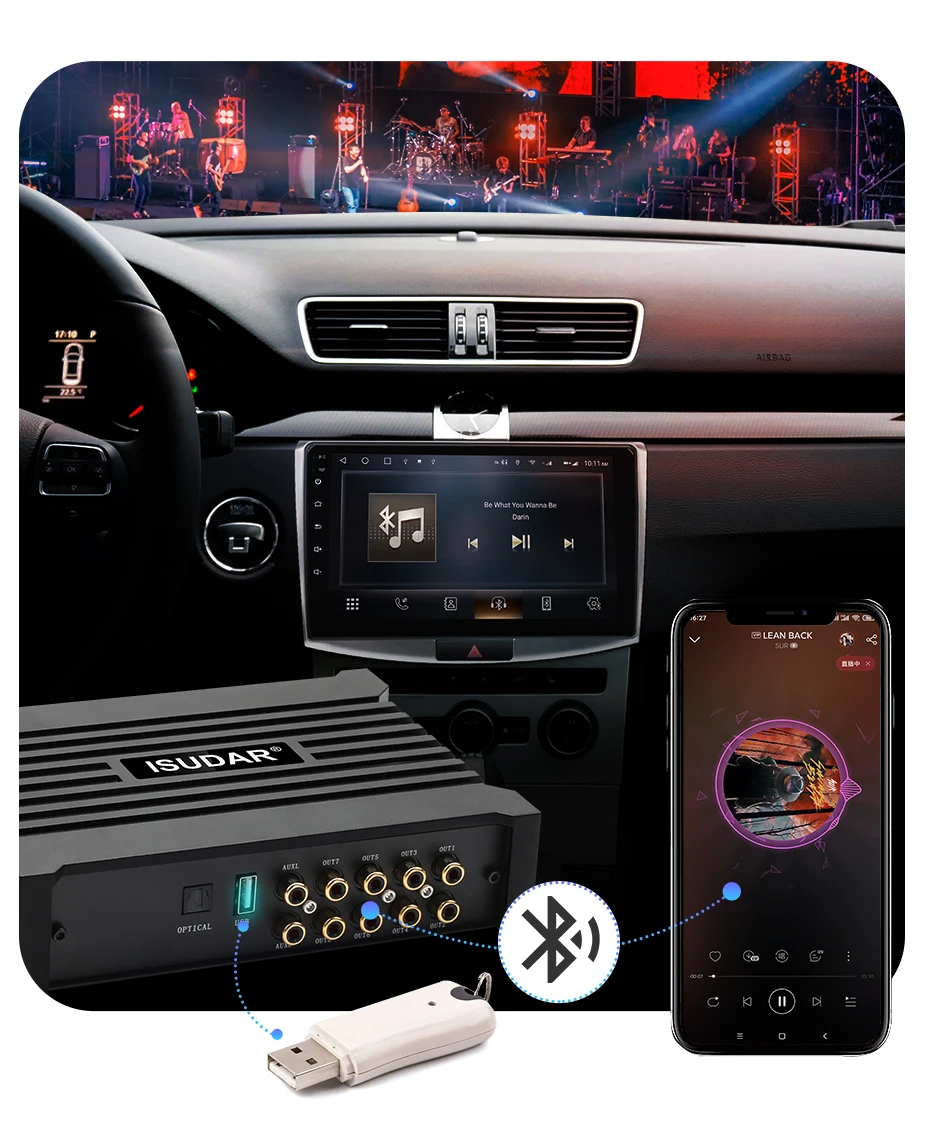

Bluetooth & U-Disk Music PlaybackBuilt-in Bluetooth, mobile audio input directlyU-Disk plug-in-play, with IR or remote control
Input & Output DetailA variety of input and output interfaces, bring more and more fun music experience
Mobile TuningYou can download ISUDAR DSP APP on our website.
Computer TuningThe adjustment of Computer areas
A:31-Band EQ adjustment Visually adjust the Frequency, Gain, and Q value of each channel.you can adjust the channel lines as you like. B: Status and common setup WIFI & USB connect, Main volume, Input source, High level mix-in.C: High and low cut filter Highpass is to cut off the frequency that are lower the setup value and pass the frequency that are higher than the setup value. Lowpass is to cut off the frequency that are higer than the setup value and pass the frequency that are lower than the setup value. When install the subwoofer,you can cut treble and alto off, let bass input subwoofer. It also can suit for original car speaker, but based on the actual situation at that time.D: Control Area Reset, Importing files, Input volume etc.E:Channel adjustment Single channel adjustment include Gain adjustment, Positive and negative phase, Delay. Let you creat a best hearing position.
