NEP Audio

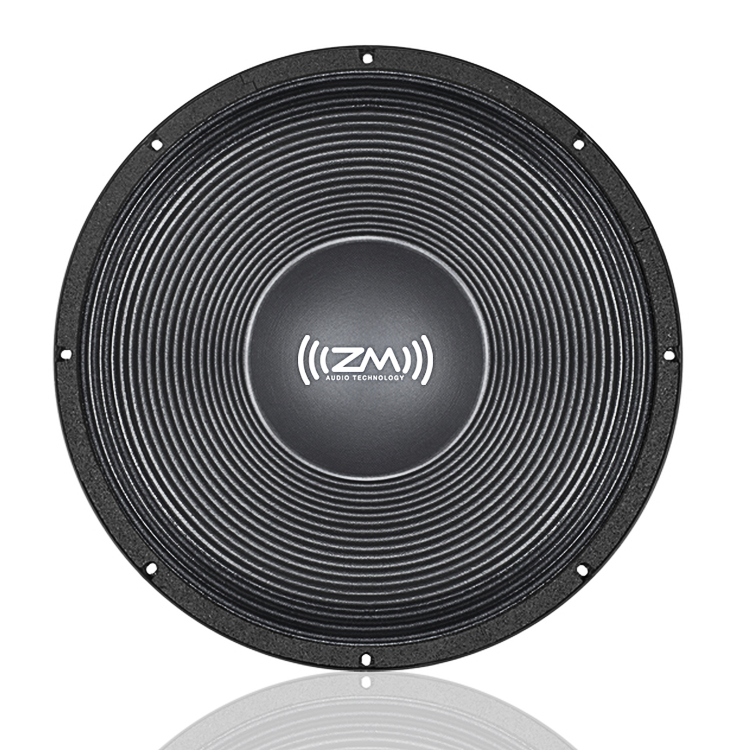

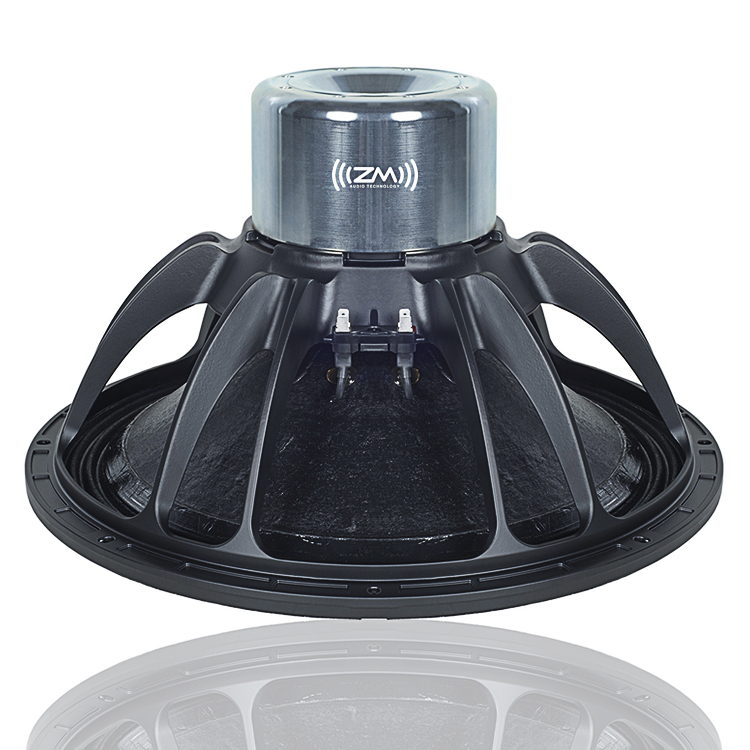

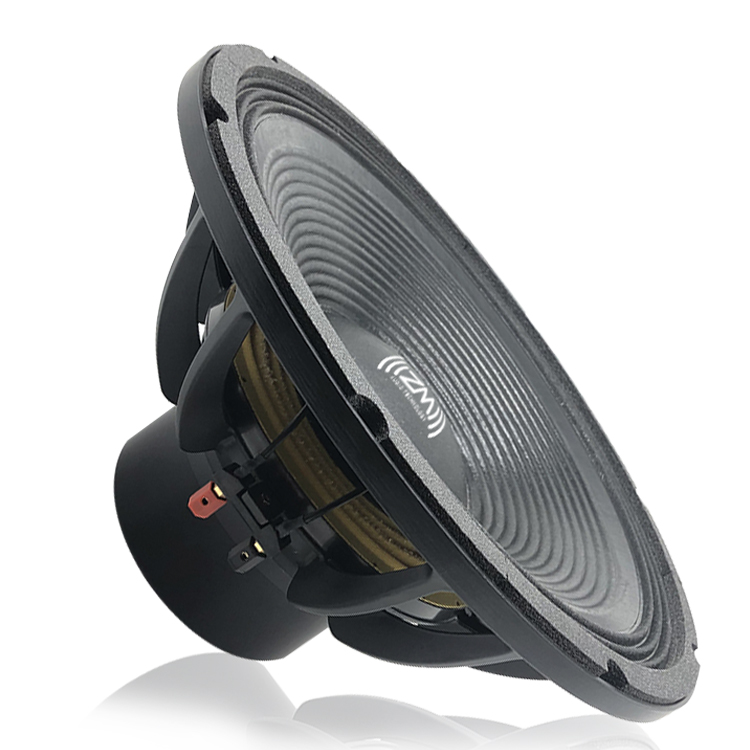

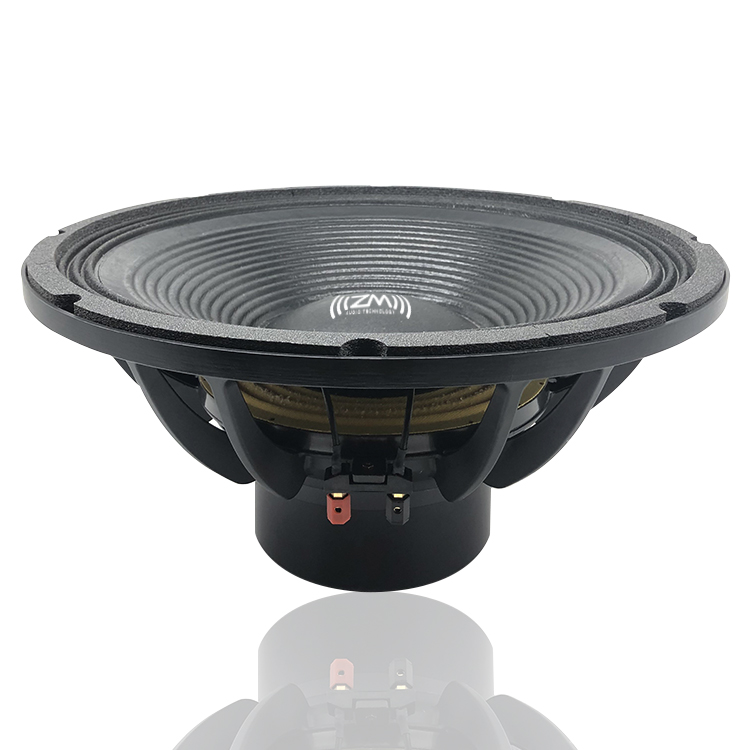

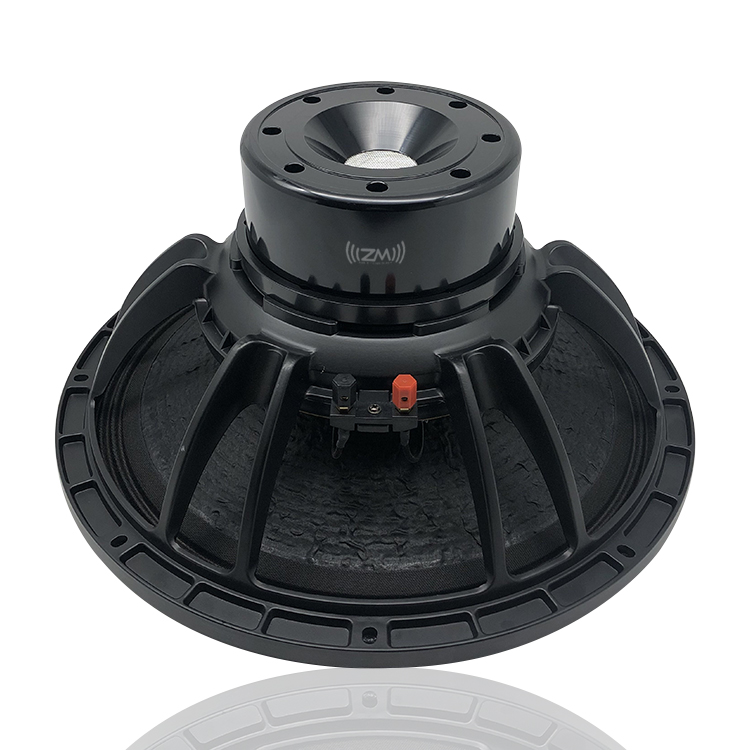

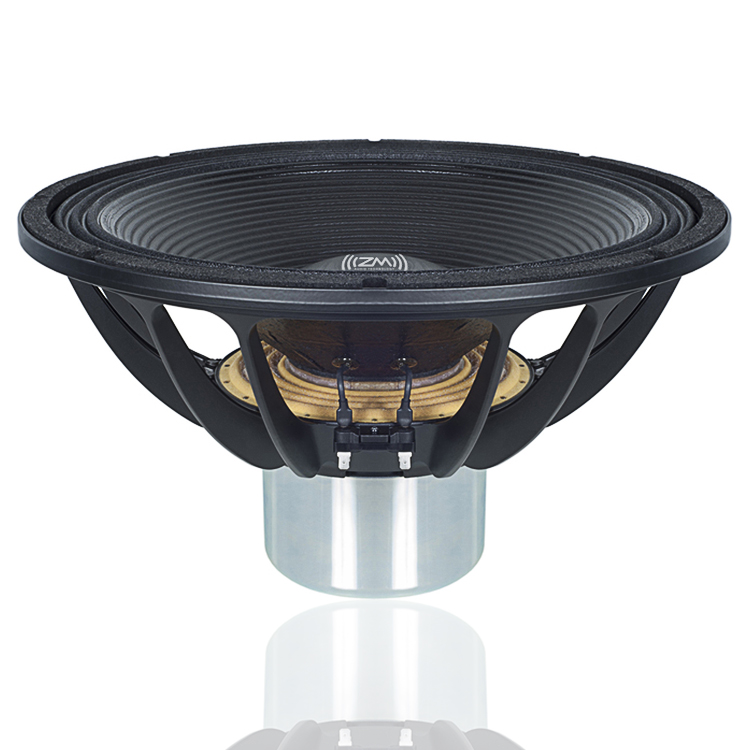

15 Inch NEO Midbass 1,700W RMS / 3,400W MAX

Regular price $299.99 USD
Regular price $355.99 USD Sale price $299.99 USD
Sale Sold out
Shipping calculated at checkout.

Impedance

We will try to keep these in stock, but many times these items are being drop shipped to our facility for inspection. We will then send the product on to you. This could delay the time it takes to receive the items by 5 days to 2 weeks. We have decided it was best to make sure it checks out OK before having it go out to you. Contact us for ETAs before or after purchase, because we always have them coming in.


Features
97 dB sensitivity
32 - 1000 Hz response
3400 W continuous program power capacity
116 mm (4.5 in) split winding aluminum voice coil
Double silicone spider with optimized compliance
Aluminium demodulating ring for very low distortion
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
460 mm (18.0 in)

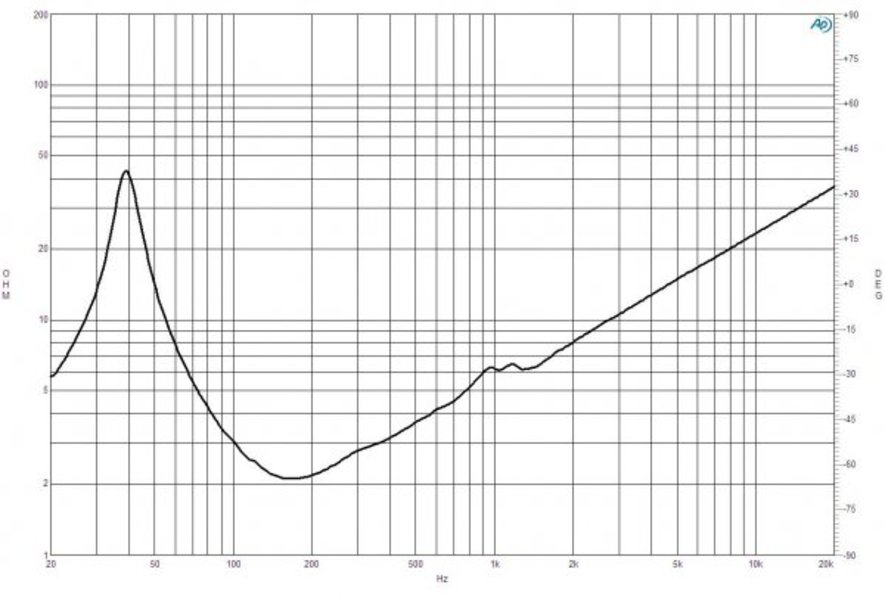

Nominal Impedance
2 Ω
Minimum Impedance
2.1 Ω
Nominal Power Handling
1700 W
Continuous Power Hangdling²
3400 W
Sensitivity³
97.0 dB
Frequency Range

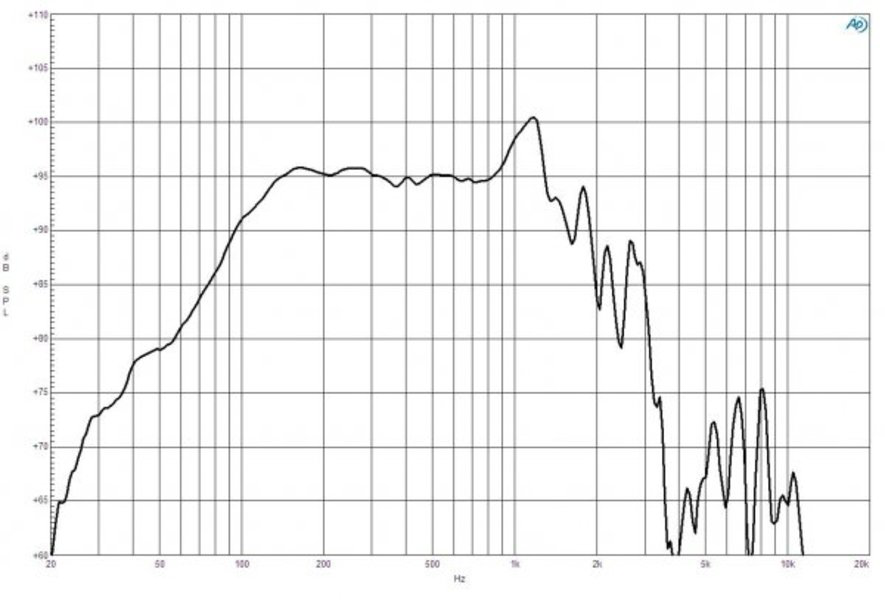

32 - 1000 Hz
Voice Coil Diameter
116 mm (4.5 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
44.0 mm (1.7 in)
Magnetic Gap Depth
12.0 mm (0.47 in)
Flux Density
1.5 T
Parameters
Resonance Frequency
32 Hz
Re
1.3 Ω
Qes
0.14
Qms
4.2
Qts
0.14
Vas
164.0 dm³(5.8 ft³ )
Sd
1210.0 cm²(187.6in ²)
Xmax
±20.0 mm
Xvar
±15.0 mm
Mms
330.0 g
BI
24.5 Txm
Le
0.65 mH
EBP
228 Hz
Producing as requirements, Cone customized, Voice Coil customized, Magnet customized
Mounting and Shipping lnfo
Overall Diameter
460 mm(18.0 in)
Bolt Circle Diameter
443mm(17.44in)
Baffle Cutout Diameter
422.0 mm(16.61in)
Depth
261 mm(10.28 in)
Flange and Gasket Thickness
16 mm (0.63 in)
Air Volume Occupied by Driver
10.5 dm³ (0.37 ft³)
Net Weight
16.6 kg(36.6 lb)
Shipping Units
1
Shipping Weight
18.9 kg(41.67lb)
Shipping Box
570x570x320mm(22.44x22.44x12.60in)
